Chef - Test Kitchen 设置

Test Kitchen 是 Chef 的集成测试框架。它支持编写测试Kitchen（配方），一旦使用Cookbook（食谱）实例化和聚合虚拟机，这些Kitchen（配方）将在虚拟机上运行。测试Kitchen（配方）在该虚拟机上运行，​​可以验证一切是否按预期工作。

ChefSpec 仅模拟 Chef 运行。Test Kitchen（测试厨房）启动真实节点并在其上运行 Chef。

步骤 1 − 安装Test Kitchen（测试厨房） Ruby gem 和Test Kitchen（测试厨房） vagrant gem，以使Test Kitchen（测试厨房）能够使用 vagrant 进行测试。

$ gem install kitchen
$ gem install kitchen-vagrant

步骤 2 − 设置Test Kitchen（测试厨房）。这可以通过在Cookbook（食谱）目录中创建 .kitchen.yml 来完成。

driver_plugin: vagrant
driver_config:
   require_chef_omnibus: true
platforms:
   - name: ubuntu-12.04
   driver_config:
      box: opscode-ubuntu-12.04
      box_url: https://opscode-vm.s3.amazonaws.com/vagrant/opscode_
      ubuntu-12.04_provisionerless.box
suites:
   - name: default
run_list:
   - recipe[minitest-handler]
   - recipe[my_cookbook_test]
attributes: { my_cookbook: { greeting: 'Ohai, Minitest!'} }

在上面的代码中，一部分定义了 vagrant 需要启动虚拟机，另一部分定义了您希望 Omnibus 在目标节点上安装 Chef。

第二部分定义了您想要测试Cookbook（食谱）的平台。Vagrant 将始终创建和销毁新实例。您不必担心使用 Vagrant 文件启动的 vagrant 虚拟机的副作用。

Test Kitchen（测试厨房）可以被视为一个临时环境，有助于在类似于生产的临时环境中运行和测试Cookbook（食谱）。使用Test Kitchen（测试厨房），可以确保给定的代码片段在实际部署到测试、预生产和生产环境之前正常运行。许多组织在将Cookbook（食谱）投入实际工作环境之前，都会将Test Kitchen（测试厨房）的这一功能作为一套进行使用。

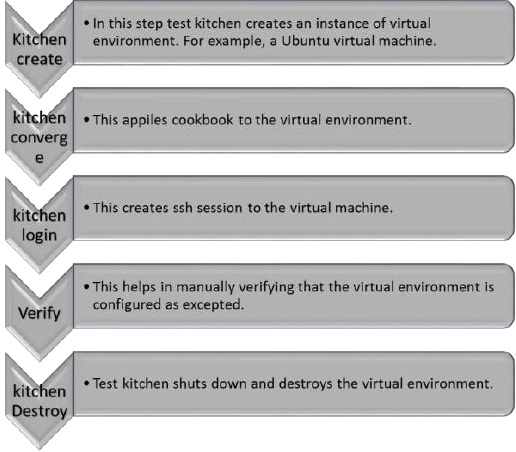

Test Kitchen（测试厨房）工作流程

以下是Test Kitchen（测试厨房）工作流程所涉及的步骤。

厨房工作流程

使用 Chef 创建Cookbook（食谱）

使用以下代码创建Cookbook（食谱）。

$ chef generate cookbook motd_rhel
Installing Cookbook Gems:

Compiling Cookbooks...
Recipe: code_generator::cookbook
   * directory[C:/chef/cookbooks/motd_rhel] action create
      - create new directory C:/chef/cookbooks/motd_rhel

   * template[C:/chef/cookbooks/motd_rhel/metadata.rb] action create_if_missing
      - create new file C:/chef/cookbooks/motd_rhel/metadata.rb
      - update content in file C:/chef/cookbooks/motd_rhel/metadata.rb from none to
      d6fcc2 (diff output suppressed by config)

   * template[C:/chef/cookbooks/motd_rhel/README.md] action create_if_missing
      - create new file C:/chef/cookbooks/motd_rhel/README.md
      - update content in file C:/chef/cookbooks/motd_rhel/README.md from none to 50deab
         (diff output suppressed by config)

   * cookbook_file[C:/chef/cookbooks/motd_rhel/chefignore] action create
      - create new file C:/chef/cookbooks/motd_rhel/chefignore
      - update content in file C:/chef/cookbooks/motd_rhel/chefignore from none to 15fac5
         (diff output suppressed by config)

   * cookbook_file[C:/chef/cookbooks/motd_rhel/Berksfile] action create_if_missing
      - create new file C:/chef/cookbooks/motd_rhel/Berksfile
      - update content in file C:/chef/cookbooks/motd_rhel/Berksfile from none to 9f08dc
         (diff output suppressed by config)

   * template[C:/chef/cookbooks/motd_rhel/.kitchen.yml] action create_if_missing
      - create new file C:/chef/cookbooks/motd_rhel/.kitchen.yml
      - update content in file C:/chef/cookbooks/motd_rhel/.kitchen.yml
         from none to 49b92b (diff output suppressed by config)

   * directory[C:/chef/cookbooks/motd_rhel/test/integration/default/serverspec]
      action create
      - create new directory
         C:/chef/cookbooks/motd_rhel/test/integration/default/serverspec

   * directory[C:/chef/cookbooks/motd_rhel/test/integration/helpers/serverspec]
      action create
      - create new directory
         C:/chef/cookbooks/motd_rhel/test/integration/helpers/serverspec

   * cookbook_file
      [C:/chef/cookbooks/motd_rhel/test/integration/helpers/serverspec/spec_helper.rb]
      action create_if_missing
      - create new file
         C:/chef/cookbooks/motd_rhel/test/integration/helpers/serverspec/spec_helper.rb
      - update content in file
         C:/chef/cookbooks/motd_rhel/test/integration/helpers/serverspec/spec_helper.rb
            from none to d85df4 (diff output suppressed by config)

   * template
      [C:/chef/cookbooks/motd_rhel/test/integration/default/serverspec/defaul t_spec.rb]
      action create_if_missing
      - create new file
         C:/chef/cookbooks/motd_rhel/test/integration/default/serverspec/default_spec.rb
      - update content in file
         C:/chef/cookbooks/motd_rhel/test/integration/default/serverspec/default_spec.rb
            from none to 3fbdbd (diff output suppressed by config)

   * directory[C:/chef/cookbooks/motd_rhel/spec/unit/recipes] action create
      - create new directory C:/chef/cookbooks/motd_rhel/spec/unit/recipes

   * cookbook_file
      [C:/chef/cookbooks/motd_rhel/spec/spec_helper.rb] action create_if_missing
      - create new file C:/chef/cookbooks/motd_rhel/spec/spec_helper.rb
      - update content in file
         C:/chef/cookbooks/motd_rhel/spec/spec_helper.rb from none to 587075
            (diff output suppressed by config)

   * template
      [C:/chef/cookbooks/motd_rhel/spec/unit/recipes/default_spec.rb]
      action create_if_missing
      - create new file C:/chef/cookbooks/motd_rhel/spec/unit/recipes/default_spec.rb
      - update content in file
         C:/chef/cookbooks/motd_rhel/spec/unit/recipes/default_spec.rb
            from none to ff3b17 (diff output suppressed by config)

   * directory[C:/chef/cookbooks/motd_rhel/recipes] action create
      - create new directory C:/chef/cookbooks/motd_rhel/recipes

   * template[C:/chef/cookbooks/motd_rhel/recipes/default.rb] action create_if_missing
      - create new file C:/chef/cookbooks/motd_rhel/recipes/default.rb
      - update content in file
         C:/chef/cookbooks/motd_rhel/recipes/default.rb from none to c4b029
            (diff output suppressed by config)

   * execute[initialize-git] action run
      - execute git init .

   * cookbook_file[C:/chef/cookbooks/motd_rhel/.gitignore] action create
      - create new file C:/chef/cookbooks/motd_rhel/.gitignore
      - update content in file C:/chef/cookbooks/motd_rhel/.gitignore from none to 33d469
         (diff output suppressed by config)

   * execute[git-add-new-files] action run
      - execute git add .

   * execute[git-commit-new-files] action run
      - execute git commit -m "Add generated cookbook content"

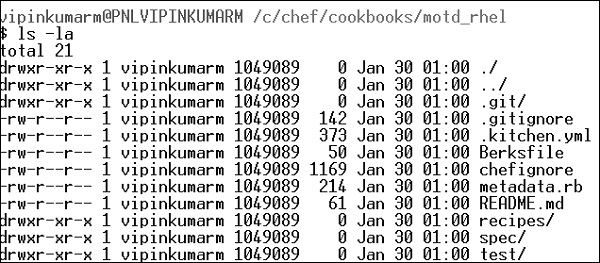

以下是上述代码输出的已创建Cookbook（食谱）结构。

Structure

Test Kitchen（测试厨房）配置文件

.kitchen.yaml file

driver:
   name: vagrant
provisioner:
   name: chef_zero
# verifier:
# name: inspec
# format: doc
platforms:
   - name: ubuntu-14.04
suites:
   - name: default
   run_list:
      - recipe[motd_rhel::default]
   attributes:

驱动程序 − 它指定管理机器的软件。

配置器 − 它提供了 Chef 如何运行的规范。我们使用 chef_zero 是因为它能够在本地机器上模拟 Chef 服务器环境。这允许使用节点属性和 Chef 服务器规范。

平台 − 它指定目标操作系统。

套件 − 它定义了想要在虚拟环境中应用的内容。在这里，您可以定义多个定义。它是您定义运行列表的位置，它指定要运行哪个Kitchen（配方）以及我们需要按照哪个顺序运行。

按顺序运行命令

Kitchen list（清单）

$ kitchen list
Instance  Driver  Provisioner Verifier   Transport Last Action
ubuntu-1404 Vagrant ChefZero   Busser       Ssh   <Not Created>

Kitchen create（创建）

$ kitchen create
-----> Starting Kitchen (v1.4.2)
-----> Creating <default-centos-72>...
      Bringing machine 'default' up with 'virtualbox' provider...
      ==> default: Box 'opscode-centos-7.2' could not be found.
         Attempting to find and install...
      default: Box Provider: virtualbox
      default: Box Version: >= 0
      ==> default: Box file was not detected as metadata. Adding it directly...
         ==> default: Adding box 'opscode-centos-7.2' (v0) for provider: virtualbox
         default: Downloading:
            https://opscode-vmbento.s3.amazonaws.com/vagrant/virtualbox/
            opscode_centos-7.1_chefprovisionerless.box[...]
         Vagrant instance <default-centos-72> created.
         Finished creating <default-centos-72> (3m12.01s).
         -----> Kitchen is finished. (3m12.60s)

Kitchen converge（收敛）

$ kitchen converge
-----> Converging <default-centos-72>...
      Preparing files for transfer
      Preparing dna.json
      Resolving cookbook dependencies with Berkshelf 4.0.1...
      Removing non-cookbook files before transfer
      Preparing validation.pem
      Preparing client.rb
-----> Chef Omnibus   installation detected (install only if missing)
      Transferring files to <default-centos-72>
      Starting Chef Client, version 12.6.0
      resolving cookbooks for run list: ["motd_rhel::default"]
      Synchronizing Cookbooks: - motd_rhel (0.1.0)
      Compiling Cookbooks...       Converging 1 resources
      Recipe: motd_rhel::default        (up to date)
      Running handlers:       Running handlers complete
      Chef Client finished, 0/1 resources updated in 01 seconds
      Finished converging <default-centos-72> (0m3.57s).
      -----> Kitchen is finished. (0m4.55s)

测试设置

Kitchen 登录用于测试测试 VM 是否配置正确。

$ kitchen login
Last login: Thu Jan 30 19:02:14 2017 from 10.0.2.2
hostname:  default-centos-72
fqdn:      default-centos-72
memory:    244180kBcpu count: 1

最终退出

$ exit
Logout
Connection to 127.0.0.1 closed.

正在销毁设置

$ Kitchen destroy
-----> Starting Kitchen (v1.4.2)
-----> Destroying <default-centos-72>...
   ==> default: Forcing shutdown of VM...
   ==> default: Destroying VM and associated drives...
   Vagrant instance <default-centos-72> destroyed.
   Finished destroying <default-centos-72> (0m4.94s).
-----> Kitchen is finished. (0m5.93s)
